B-824 SureFlo® Automatic Counter-Mounted Liquid Soap Dispenser
Specification

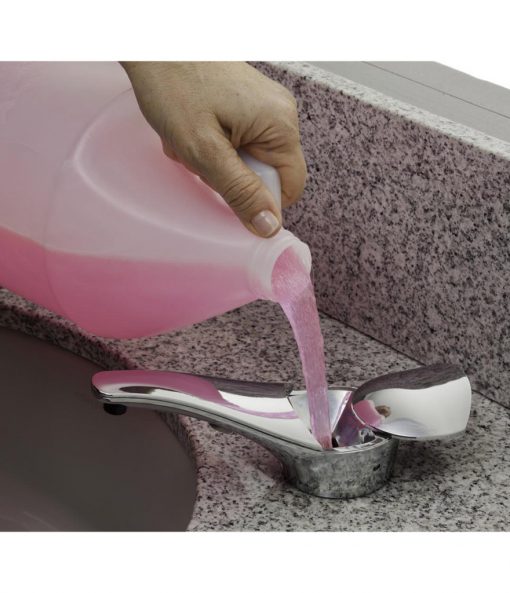

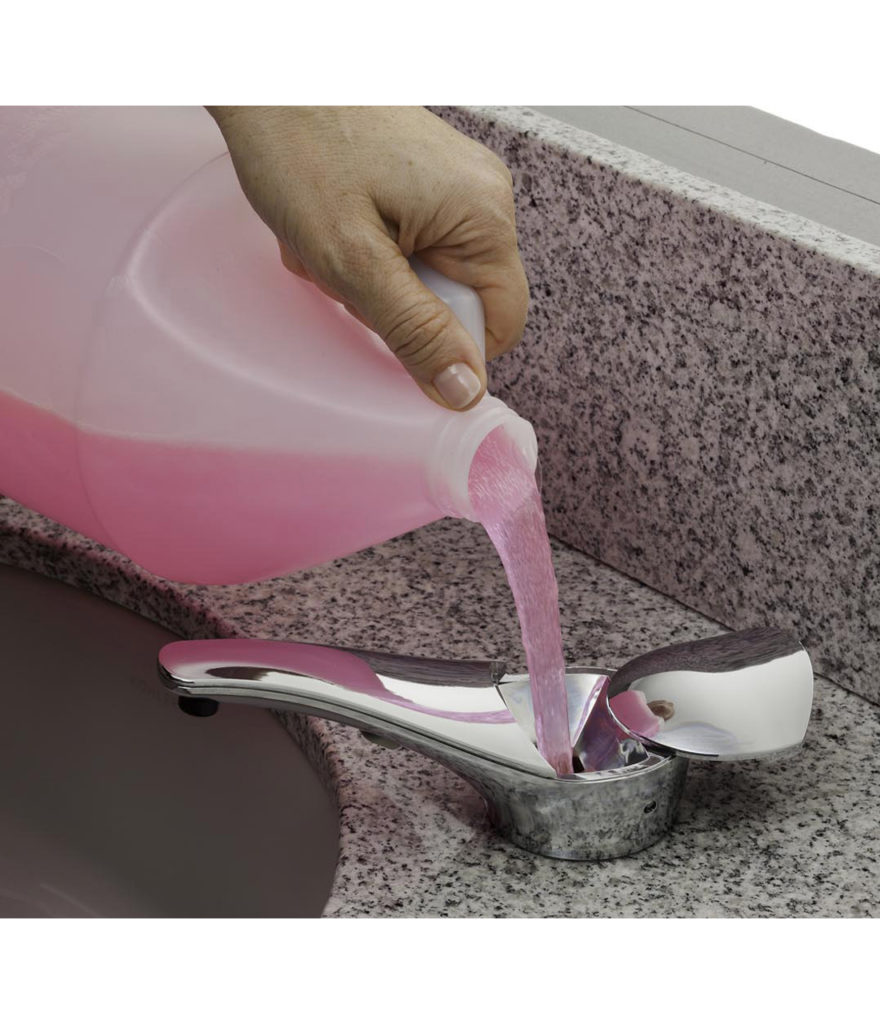

Automatic, Counter-Mounted Liquid Soap Dispenser shall dispense adjustable amount (.4 to 3 ml) of commercially marketed all-purpose bulk liquid hand soaps of various viscosities. Spout assembly shall be bright polished chrome plated ABS plastic with integral shank to accommodate up to 2” (50mm) thick counter tops. Unit shall be equipped with oversized funnel shape opening, covered by a 180° rotatable lid with concealed locking mechanism to allow for top filling. Unit shall have LED indicators to show when unit has been activated and low battery life. Unit shall have IR Sensor located on PC board housed in water-resistant ABS plastic housing. Activation Lens shall allow for defined activation range to eliminate chance of false activation during hand washing. Portion Control Knob shall allow field adjustment of desired volume of soap dispensed per hand wash. Unit shall be equipped with an Automatic System Flush Button to allow for cleaning and maintenance. Battery Pack uses 4 “D” cell batteries (not included) providing a battery life of up to 200,000 cycles or 2 years. Optional A/C adapter available, order Part No. 3974-55.
Finish
Bright polished chrome plated ABS plastic spout.
Features

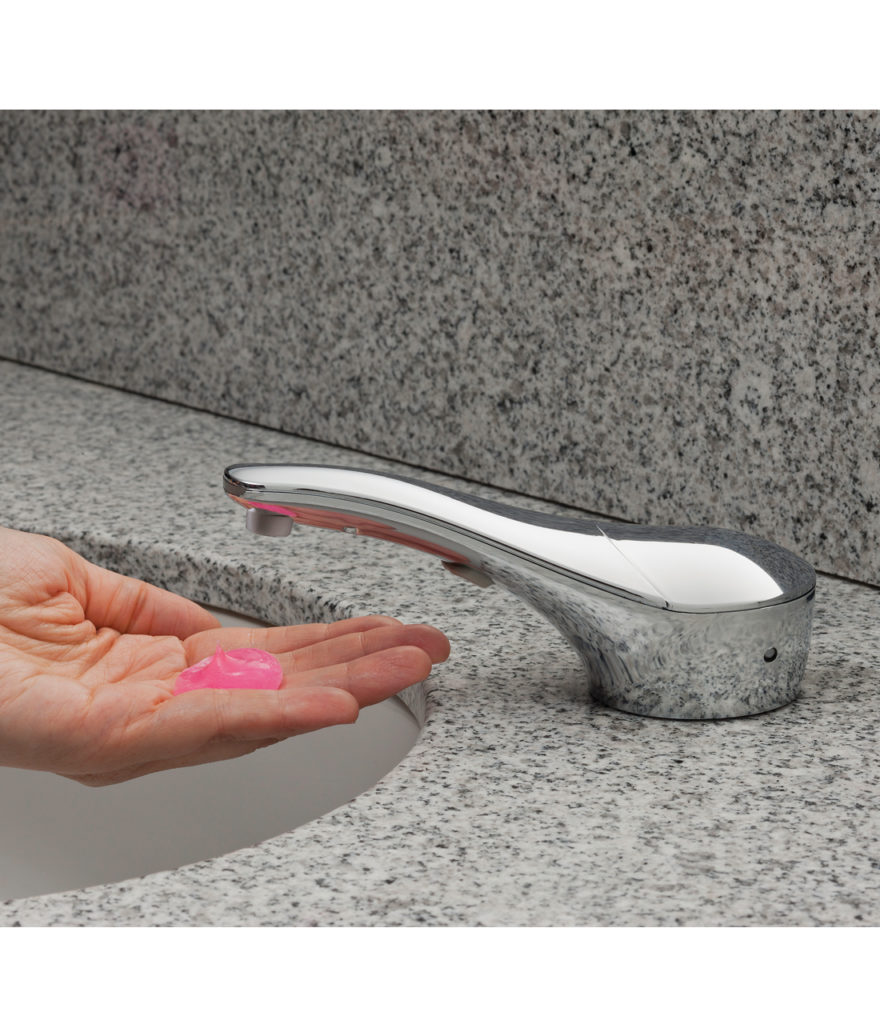

Top-filling for ease of maintenance and labour saving. Touch-free sensor eliminates cross contamination. Adjustable portion control. Auto System Flush button. Reduces soap usage and waste.
Dimensions
70mm (W) x 75mm (H) x 170mm projection
Notes
Bobrick stainless steel soap dispensers are not designed to dispense alcohol-based hand sanitizers or iodine-based surgical soaps. To help prevent corrosion and extend the service life of soap dispensers, liquid soaps should be chloride-free and pH-neutral
